• 24 1G ports with IEEE 802.3af/at/bt PoE up to 90W
• 4 x 1G/2.5G/10G uplink fiber ports
• Jumbo frame programming at all bandwidth settings
• Layer 3 static trace routing
• 770W PoE Budget
• Backup DC external power up to 1000W
• G8032 V1/V2 Standard Ring Protocol
• Built in 8Kv contact and 15Kv air surge protection on all ports
• Unique TimeZone reference for setting system synchronization

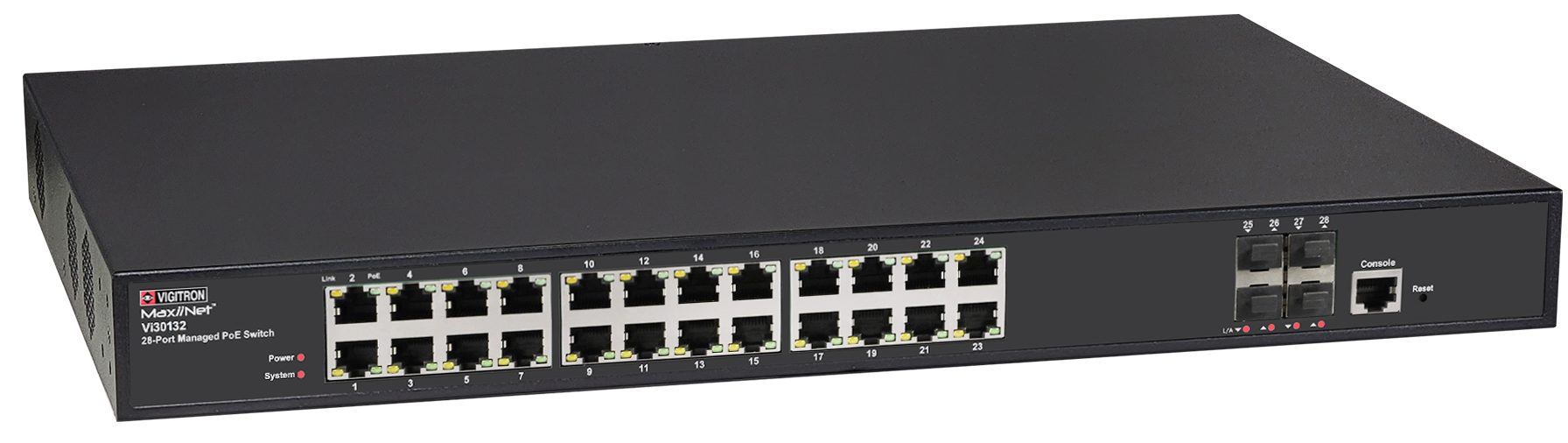

Vigitron’s Vi30132 is an L2+/L3 Static Routing Managed PoE. Switch. It provides IEEE 802.3bt compatible PoE power up to 90W, on all ports.

A unique Time/Date reference allows NTP linked to central computer or server for time/Date related functions. A redundent power input can accept up to 1000W to provide back up power in the event of the main power failure.

Link status is continuously monitored and displayed. In the event a link is lost and not recovered within 2 minutes, the switch will attempt to re-apply PoE and re-establish the link.
