Aquestia offers a complete range of listed and type-approved hydraulic deluge and fire control valves, including both globe and diaphragm safety valves, covering all relevant fire and safety applications. With ‘in-line’ serviceability enabling easy maintenance without removal from the line, our solutions feature precise hydraulic performance, for smooth and efficient operation of safety systems.
Aquestia – high-quality, reliable products and committed service, for your peace of mind.
Advanced hydraulic solutions for optimal management of liquid conveyance systems
Aquestia is a world leader in providing optimal solutions for surge protection, water loss reduction and pressure management, by integrating uniquely developed products with innovatively designed
software.
Aquestia brings together three strong brands – OCV, A.R.I. and Dorot - combining decades of experience, a wealth of knowledge and expertise, and a wide range of solutions and services.
Aquestia is where liquid flows - fire protection, aviation fueling, oil and gas, waterworks & wastewater systems, irrigation, mining, ballast water and desalination, commercial plumbing.
Our product groups
More about us
Regional Contacts Aquestia Middle East Sony John - Sales Manager - Middle East Fire Protection & Industry Dubai, United Arab Emirates Mobile: +971 56866 0123 sony.john@aquestia.com International offices- OCV site: 7400 East 42nd Place Tulsa, Oklahoma, USA 74145-4744 Toll Free: 1-888-OCV-VALV (628-8258) Phone: 918-627-1942
Downloads
Our Products

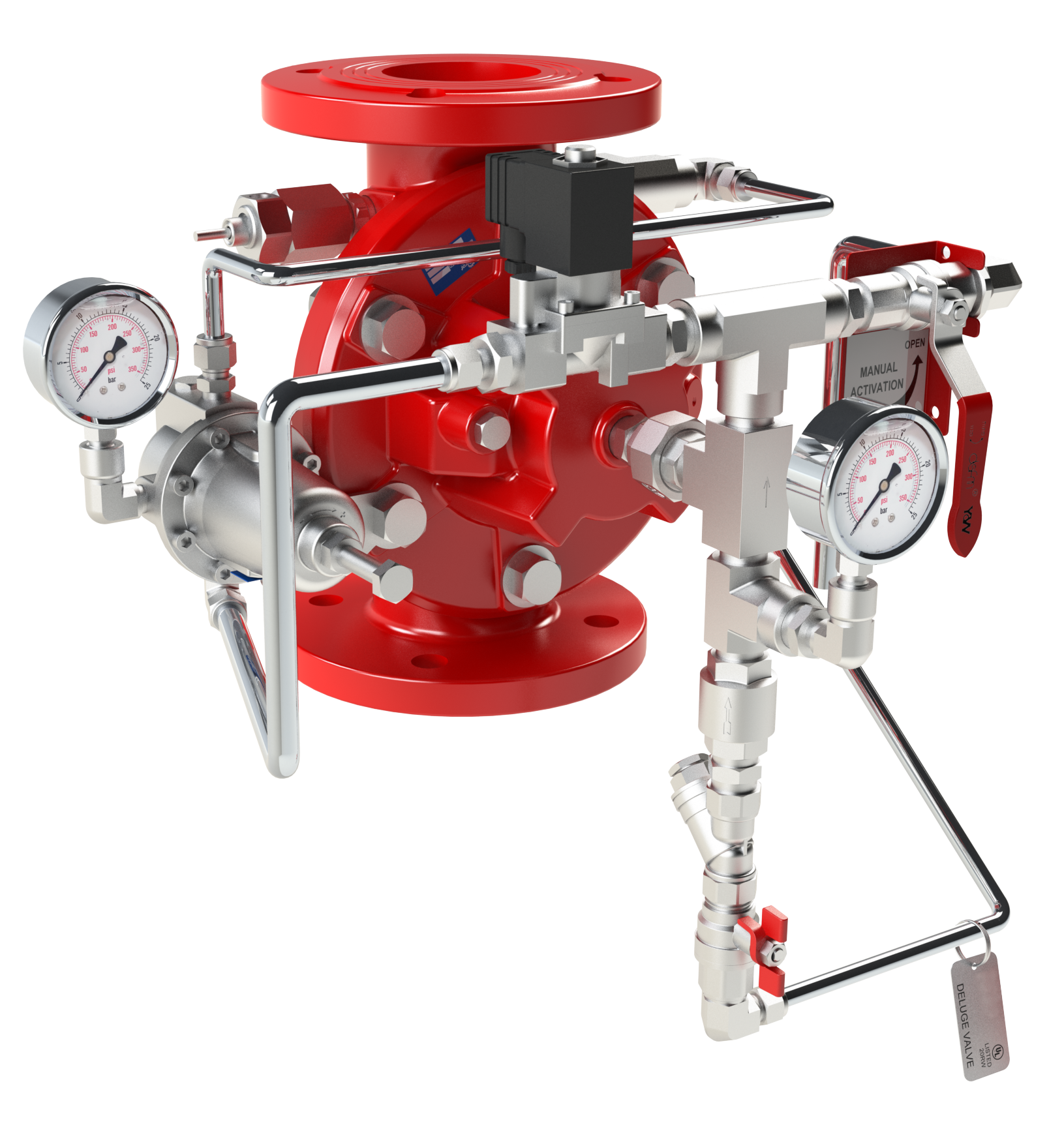

OCV 68 DE\EL-MR - Electrically Actuated, Manual Reset Deluge Valve 2/2 Solenoid
Electrically controlled, deluge/pre-action valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when a 2w solenoid valve is energized. The valve must be manually reset following automatic actuation. An emergency manual release valve is fitted as standard.
UL Listed under VLFT category
ABS Type Approval
Lloyd’s Register Approval
ANSI FCI 70-2 Class VI seat leakage class
Fire tested to EN ISO 6182-5:2006 (2”-6” only)
– High pressure (PN25/375psi), high flow deluge systems
– Automatic or local manual emergency actuation
– Hazardous, flammable & explosion classified area fire suppression
– Superior design featuring exceptionally low pressure losses at high flow rates
– Low lifelong maintenance costs due to straightforward design
– Applicable for fresh or brackish water, seawater & foam
– Out of box fully assembled & tested valves
– Factory trimmed for vertical & horizontal installations without modification
– Extensive valve & trim materials selection

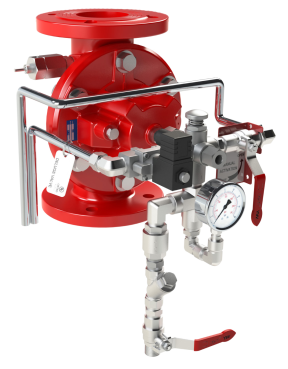

OCV 68 DE\EL\PR Electrically Actuated, Pressure Reducing, Remote Reset Deluge Valve 2/2 Solenoid
Electrically controlled deluge/pre-action pressure reducing valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when a 2w solenoid valve is energized. When tripped, the valve regulates to a steady, preset downstream pressure, regardless of upstream pressure or flow rate fluctuations. It closes drip tight when the solenoid valve is de-energized. An emergency manual release valve is fitted as standard.
Certification & Compliance
UL Listed under VLFT category
ABS Type Approval
Lloyd’s Register Approval
ANSI FCI 70-2 Class VI seat leakage class
Fire tested to EN ISO 6182-5:2006 (2”-6” only)
– High pressure (PN25/375psi), high flow deluge systems
– Automatic or manual emergency actuation
– Hazardous, flammable & explosion classified area fire suppression
– Superior design featuring exceptionally low-pressure losses at high flow rates
– Applicable for water, seawater & foam
– Out-of-box fully assembled & tested valves

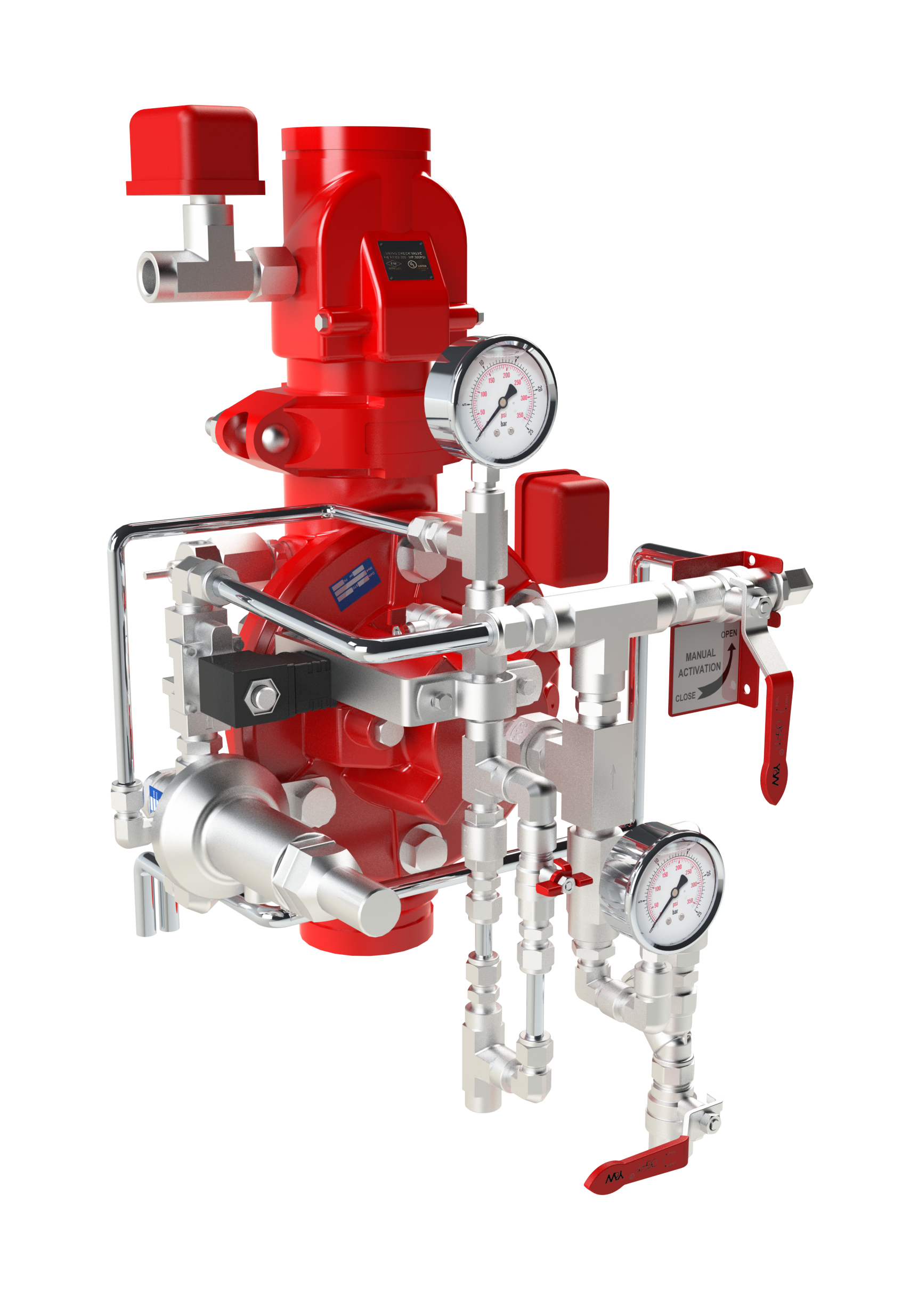

OCV 68 DE\EL\PORV-DN Double-Interlock Pre-Action, Electro-Pneumatic Release System
Electrically and pneumatically, pilot-controlled, double-interlock preaction valve, actuated by the pipeline pressure. The valve is closed in its normal, set position and opens when the pressure drops in a gas-pressurized supervisory pilot line, sensed by the relay valve, and the solenoid valve is energized. An emergency manual release valve is fitted as standard. Also available with manual reset: DE\ EL\PORV-DN-MR.
Certification & Compliance
UL Listed under VLFT category
ABS Type Approval
Lloyd’s Register Approval
ANSI FCI 70-2 Class VI seat leakage class
Fire tested to EN ISO 6182-5:2006 (2”-6” only)
– High pressure (PN25/375psi), high flow systems
– Automatic or manual emergency actuation
– Industrial & commercial fire suppression
– Hazardous, flammable & explosion classified area fire suppression
– Superior design featuring exceptionally low-pressure losses at high flow rates
– Low lifelong maintenance costs due to straightforward design
– Applicable for water, seawater & foam

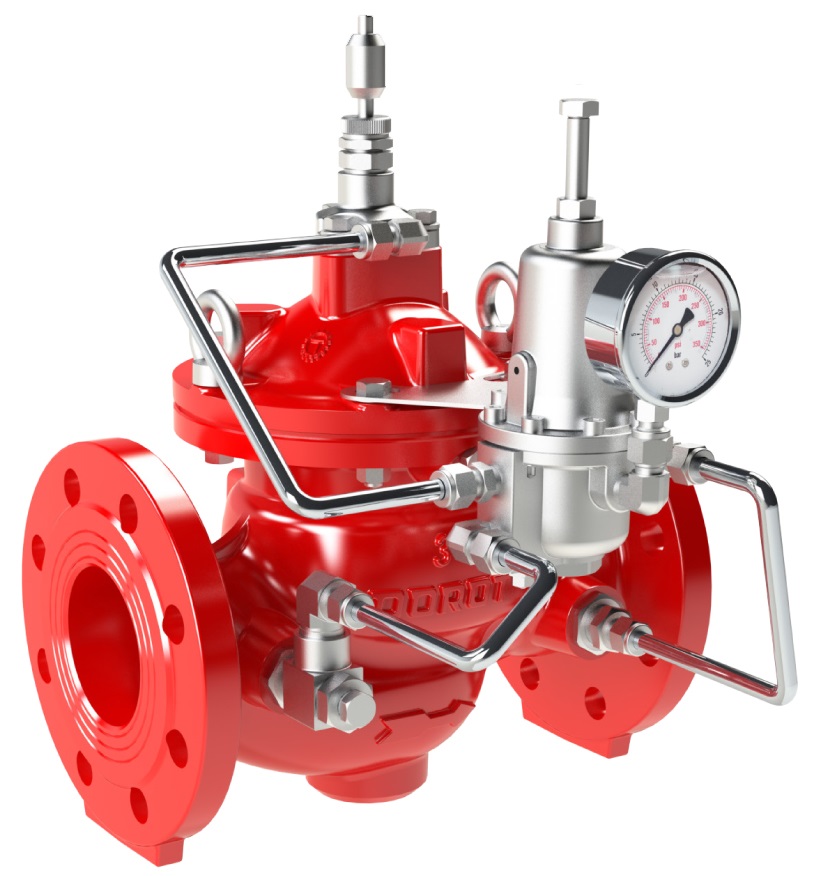

OCV 30 PR\UL Pressure Reducing Valve
An automatic, pilot controlled, pressure reducing valve actutated by the pipeline pressure. The valve regulates to a steady, preset downstream pressure regardless of upstream pressure or flow rate fluctuations. In case of excessive downstream pressure, the valve closes drip tight.
Certification & Compliance
UL Listed under VLFT category
Lloyd’s Register Approval
ANSI FCI 70-2 Class VI seat leakage class
– Simple field adjustable pressure setting; no special tools & no system downtime
– Superior design featuring low pressure losses at high flow rates
– Low lifelong maintenance costs due to unique frictionless internal trim design
– High flows & working pressures (PN25/375psi)
– Stable regulation from near zero flow to maximum design flow
– Regulates at low flow & high pressure differential without bypass or U/V port design
– Out of the box fully assembled & tested valves
– Extensive valve & trim materials selection & corrosion protection coating
– Stainless Steel seat as standard

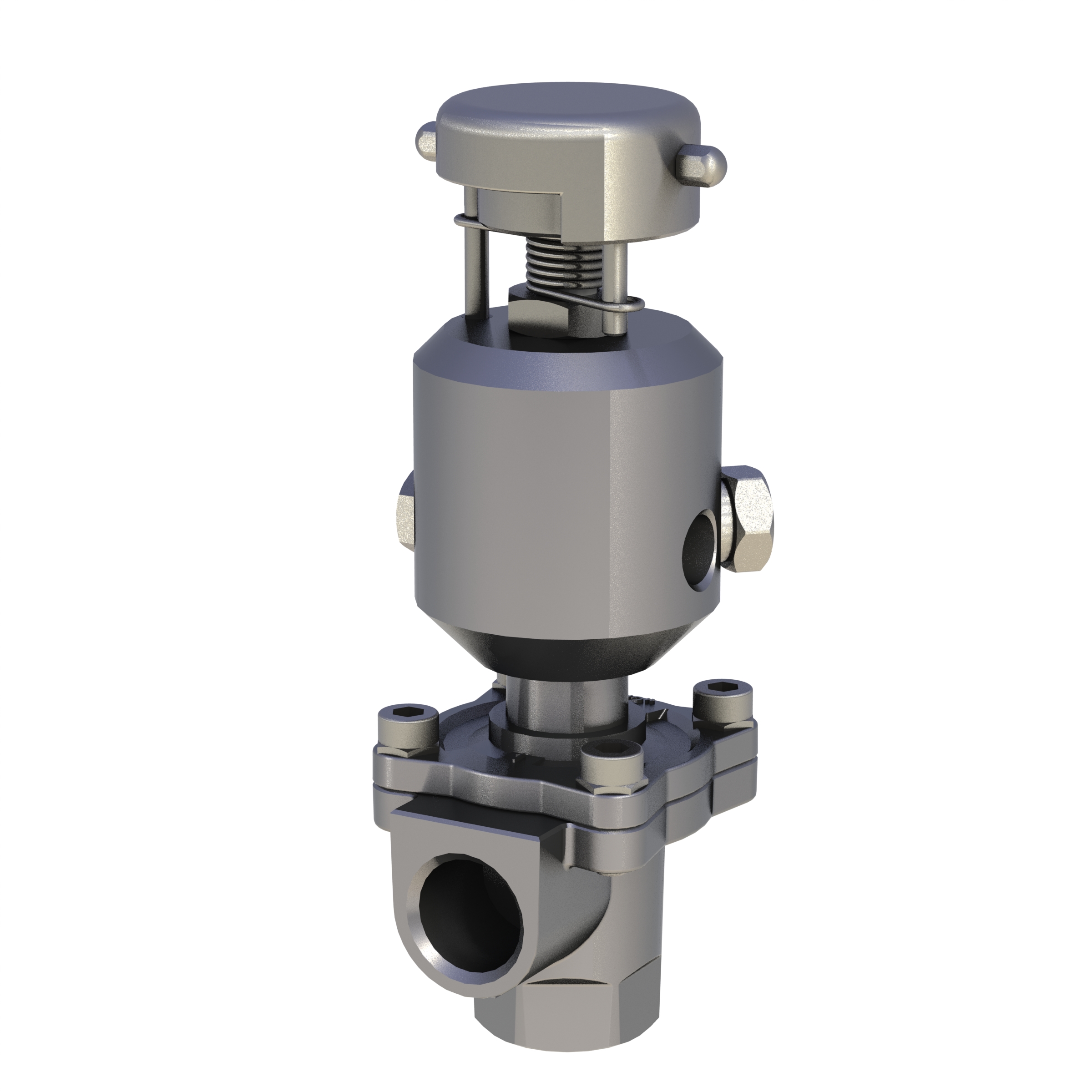

OCV RCL 28-2UL 2-Way Relay, Manual Reset Latching Device
A 2-Way, spring-loaded, manual reset latching device, applicable for service on deluge and pre-action valve trims. In its “Ready” position, it prevents draining of the deluge valve’s control chamber, keeping the deluge valve closed. Once the deluge valve is actuated, the RCL 28-2UL shifts to its “Latched Open” position, allowing draining of the control chamber and latching open the deluge valve. Manual resetting is accomplished by rotating the RCL 28-2UL’s knob
Certification & Compliance
UL Listed (when installed on OCV control valves)
Features & Benefits
– Simple design & maximal dependability
– Extremely large water passages enable fast response
– Tough and durable construction
