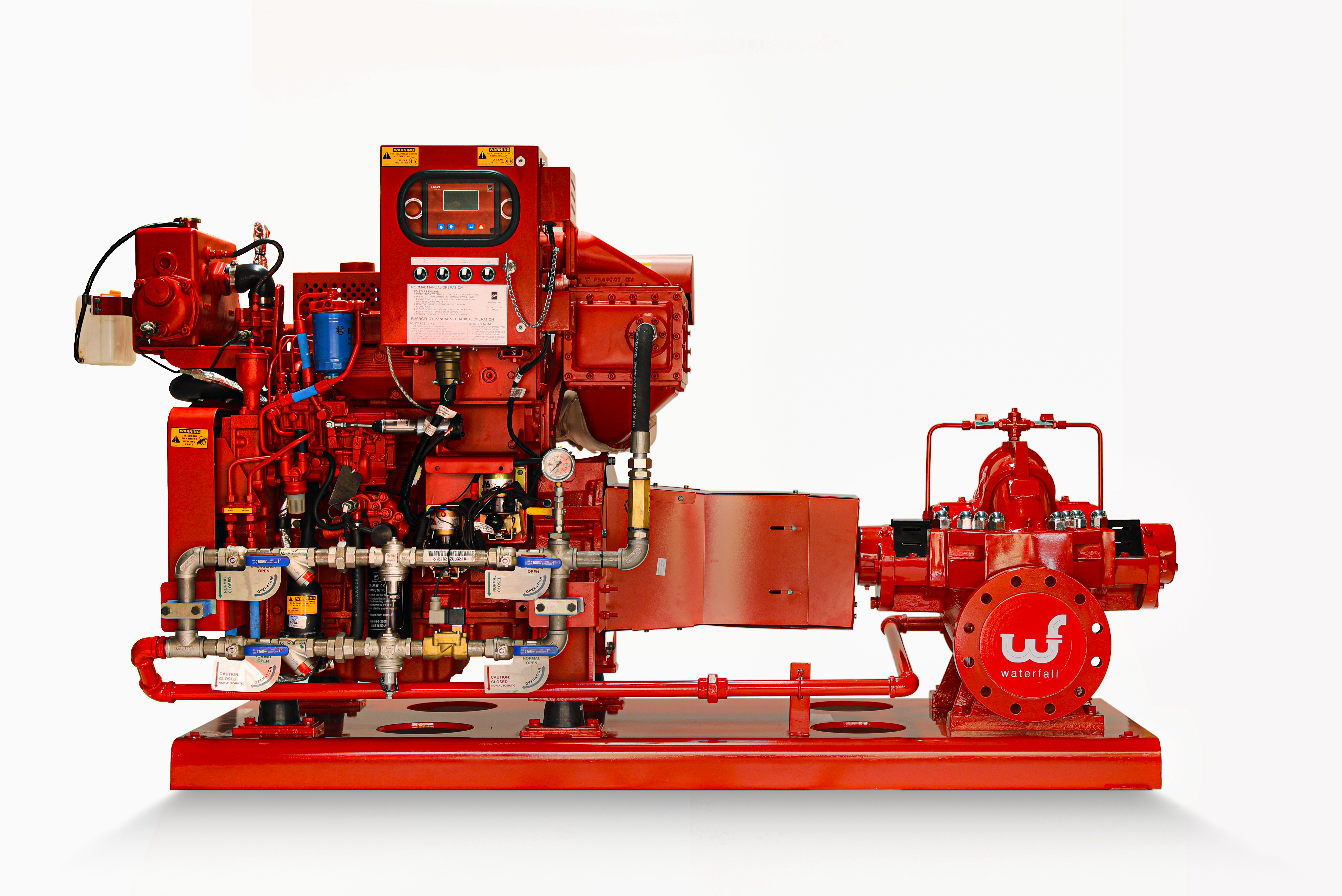

Horizontal Split Case Fire Pumps are rugged, heavy-duty construction coupled with superior design features make this type of pumps very reliable and higher efficiency while requiring low maintenance. Fully enclosed double suction impellers practically eliminate axial thrust while radial load is equally shared by the bearings located at each end of the shaft. The simplicity of design allows service without disturbing piping at site. It can be driven by either an electric motor (50Hz / 60Hz) or a diesel engine with a full range of options and accessories available to comply NFPA standard requirements. Horizontal Split Case Fire Pumps are ideal when the source of water is located above the ground as it provides a positive suction pressure to the pump throughout the performance point.

PUMP PERFORMANCE RANGE

• Flow ranges from 300 GPM up to 5000 GPM
• Pressure ratings from 81 PSI up to 345 PSI

REFERENCE STANDARDS

• Underwriters Laboratories (UL) – 448
• Factory Mutual (FM) – 1311
• NFPA 20

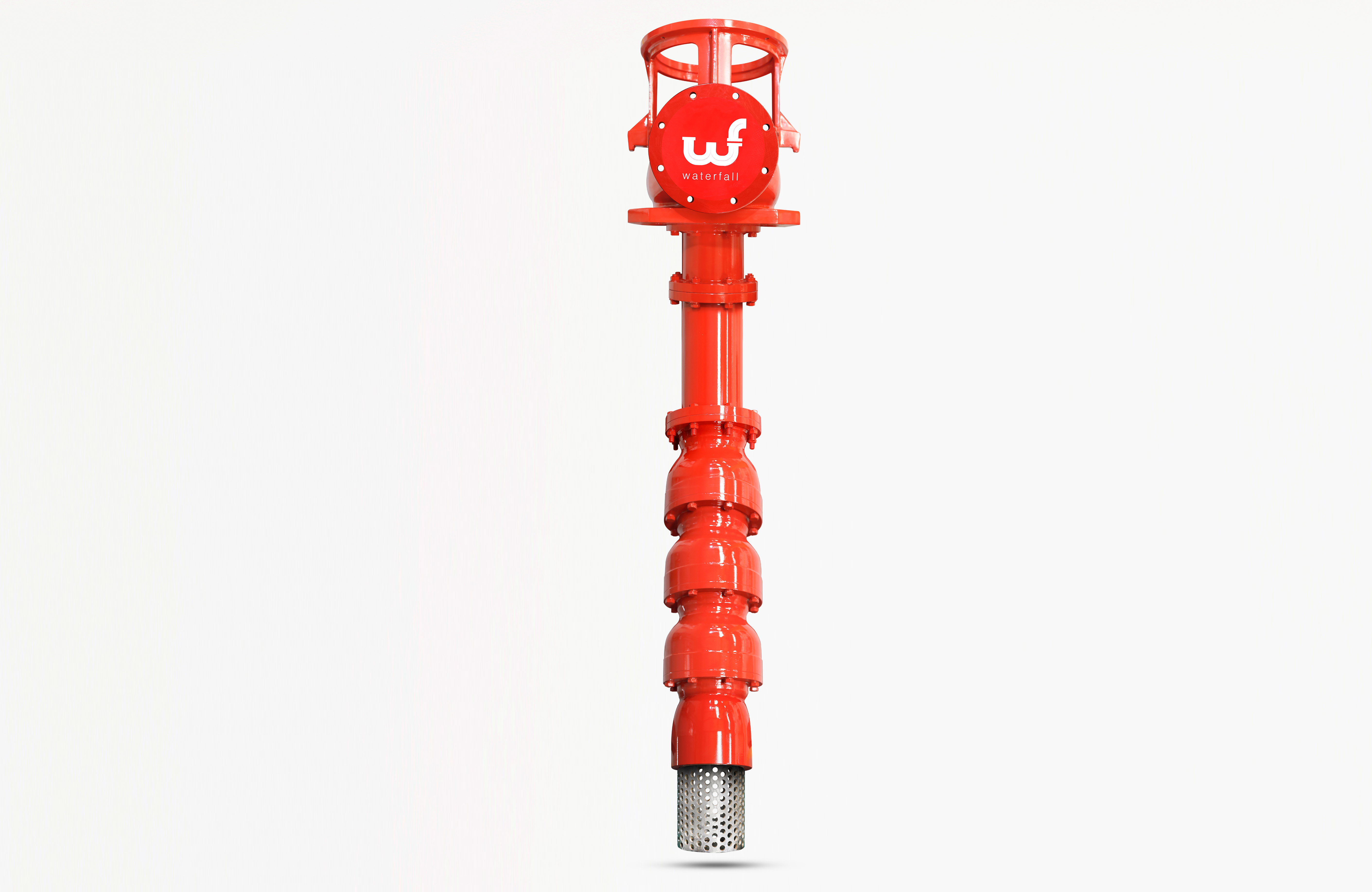

Vertical Turbine Fire Pumps are specially designed to pump from water source located underground or below deck. The flexibility of its design allows the use of a wide range of materials. Vertical Turbine Pumps use multi stage configuration to meet the specific requirements of the user and can be customized according to specific in-stallation requirements. The space saving vertical design minimizes the floor space requirements. It can be driven by either an electric motor (50Hz / 60Hz) or diesel engine with a full range of options and accessories available to complete the NFPA-compliant fire pump. FM approved Right-angled gear drives are provided with the diesel engine driven vertical turbine fire pumps.

PUMP PERFORMANCE RANGE

• Flow ranges from 150 GPM up to 2000 GPM
• Pressure ratings from 49 psi up to 402 psi REFERENCE STANDARDS

REFERENCE STANDARDS

• Underwriter Laboratories (UL) – 448
• Factory Mutual (FM) – 131
• NFPA 20

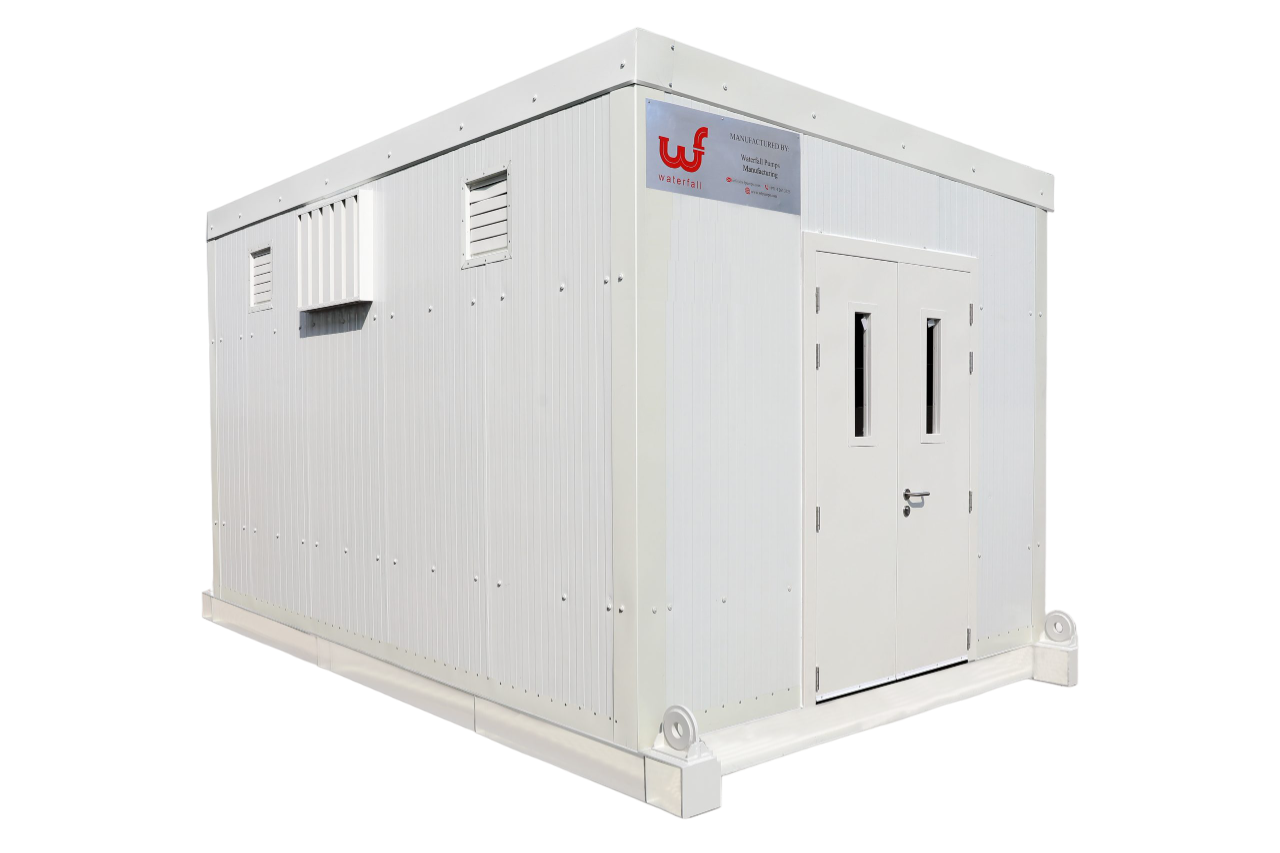

WF Fire Pump House (Pre-packaged fire pump system) designed according to the site or client’s preferences while complying standard requirements NFPA, UL & FM. Due to its single source responsibility and compact feature, the on-site installation of the system can be completed in as little as 6 hours which reduces the installation cost, labor hours and eliminates potential field installation and interface problems. Components are selected from the most reliable manufacturers across the globe in order to ensure the best functionality of the equipment will be delivered and consists of UL Listed / FM Approved fire pumps, controllers, valves, pressure gauges, flowmeter, fuel tanks etc., wherever applicable. Electrical connection, piping lines and installation of the component is completed in the factory and is ensured to undergo for quality checks and inspections. Complete system is leak tested to eliminate on-site leaks.

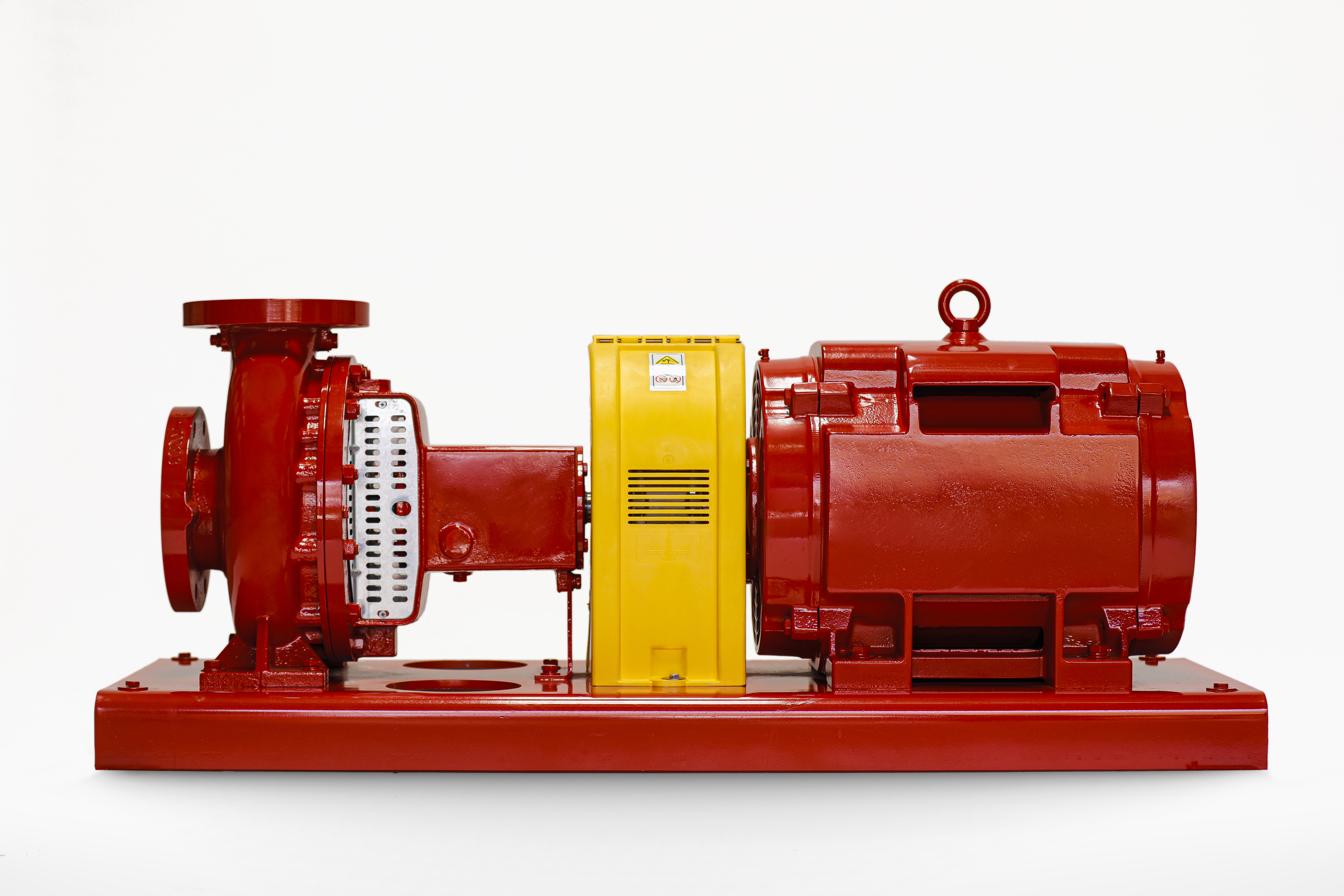

End Suction Fire Pumps are engineered to last long with a precision-cast, dynamically balanced and enclosed impeller that minimizes the vibration and maximizes bearing life. Due to its back-pull-out design, the complete bearing assembly including impeller and casing cover can be dismantled without removing the volute casing from the pipe system. It can be driven by either an electric motor (50Hz / 60Hz) or diesel engine with a full range of options and accessories available to complete the NFPA-compliant fire pump. End Suction Fire Pumps are ideal when the source of water is located above the ground as it provides a positive suction pressure to the pump throughout the performance point.

PUMP PERFORMANCE RANGE

• Flow ranges from 50 GPM up to 1000 GPM
• Pressure ratings from 80 psi up to 309 psi

REFERENCE STANDARDS

• Underwriter Laboratories (UL) – 448
• Factory Mutual (FM) – 1319
• NFPA 20
