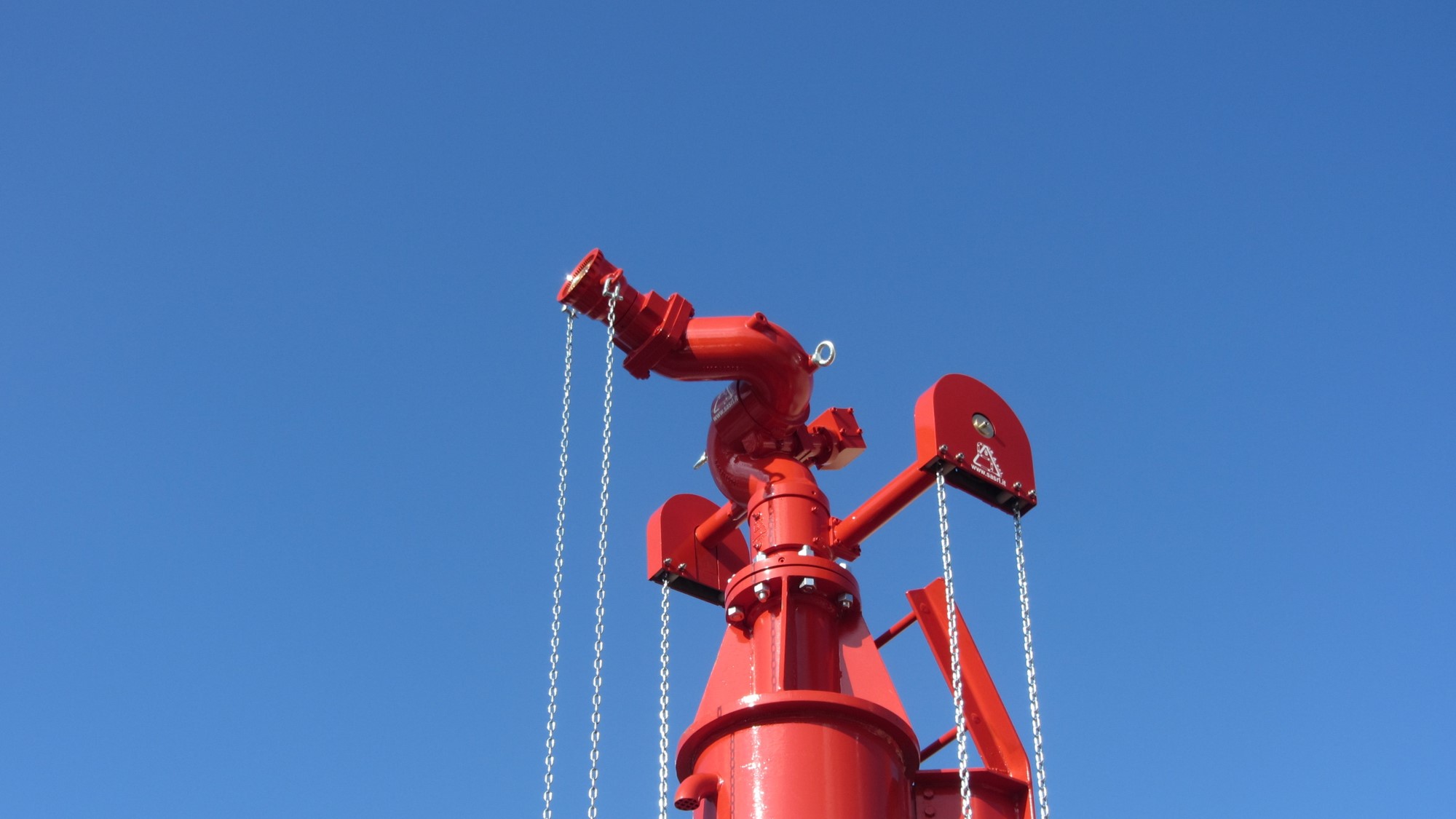

Manual monitors are hand operated devices used to fight fires which require a large amount of water or water/foam solution to be delivered to remote targets. Every monitor is designed to be easily operated by its commands, requiring very little force by the operator even when adjusted during operation. The Monitor bodies are available in Bronze or Stainless Steel for installation within harsh industrial environments. Each piece is designed and manufactured with extreme care to be robust and grant a long service life in adverse environmental conditions. Depending on the application, manual monitors can be equipped with nozzles or branch pipes capable of discharging water or water/foam solution. Nozzles and foam branch pipes are also available with a built-in inductor that allows water and foam proportioning before discharge. Each monitor can be coupled to a large variety of accessories such as selfoscillating units, hydrant supports, nozzles and branch pipes.

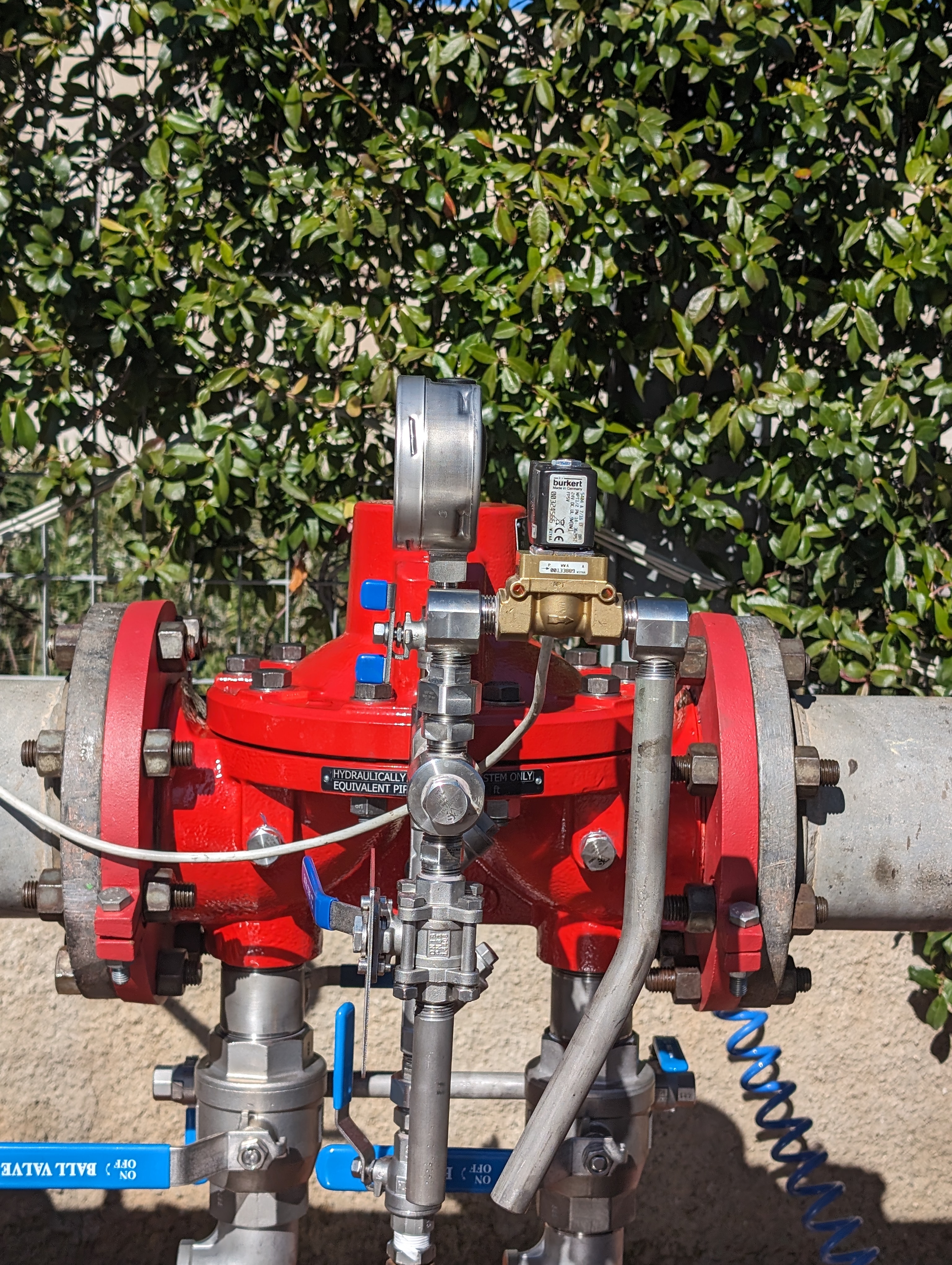

Deluge valves are intended to respond quickly after fire detection, delivering large amounts of water over the entire protected area. SA Fire deluge valves are used to control water flow in deluge,
pressure reducing and ON/OFF fire protection systems. They can be trimmed with electric, pneumatic, electro-pneumatic and hydraulic release systems (trims), depending on the specific application. SA Fire deluge valves are quick opening diaphragm type valves specifically designed for highly corrosive environments, such as petrochemical onshore and offshore installations.
In this respect, the deluge valves and all their accessories are made of corrosion resistant materials, such as Nickel Aluminium Bronze, also suitable for sea water, foam concentrate and water foam solution. SA Fire deluge valves are manufactured for vertical or horizontal installation. The
deluge valves and all their accessories have been designed according to NFPA 15, UL 260.

Model CPM is a foam monitor trailer 2500– 4000 lpm (700-1000 gpm) which is used with self-inducing monitors. These trailers are normally used by internal industrial fire brigades that use
them when there is a need to deploy additional firefighting appliances on a specific target or to
cover an area where fixed firefighting systems are not installed. The monitor trailer is made of a
carbon steel structure on which a foam concentrate tank and a monitor are located. The
space available for tank installation can house a maximum of two 1000 liters IBC tank, or in
alternative, a custom made tank in AISI 304 or 316, with volume up to 2500 litres. It is possible
to install a manual or a self-oscillating monitor with a self-inducing nozzle or branch pipe on the
trailer.

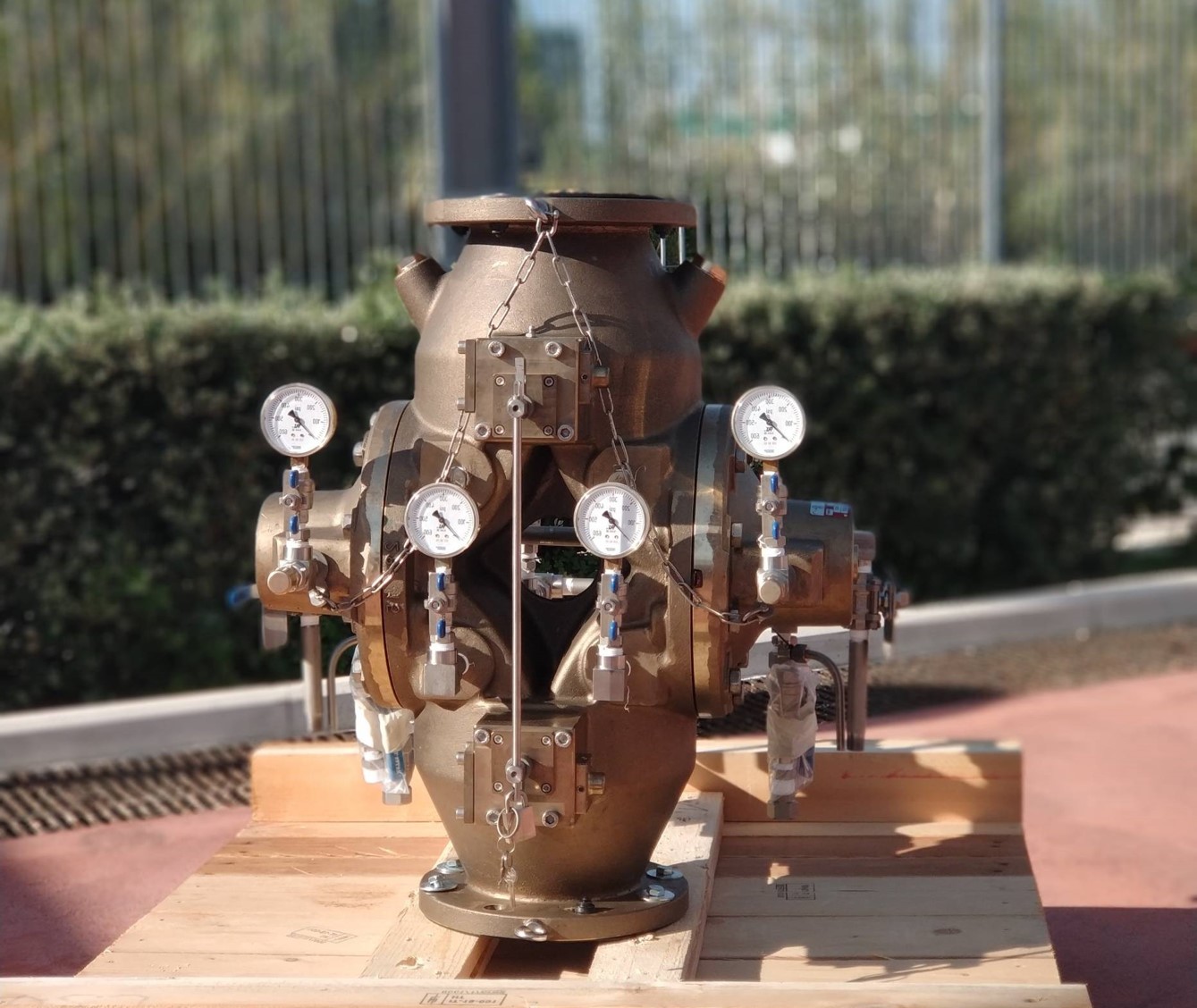

The deluge valve Model VDD is an innovative concept valve designed for fire protection systems according to NFPA 15, UL 260 and IEC 61508/61511. The VDD deluge valve combines all the functions available on the traditional deluge valves with a fully redundant architecture,
designed to achieve higher reliability. In fact, the VDD deluge valve has two priming chambers,
each one provided with its own diaphragm (made of EPDM reinforced with Nylon) and actuation trim, which offer two independent waterways to the water spray system Each priming chamber provides the nominal design waterway for the fire protection system: in case of failure of one diaphragm, the opening of the other diaphragm allows the hydraulic waterway for the correct operation of the
water spray system.

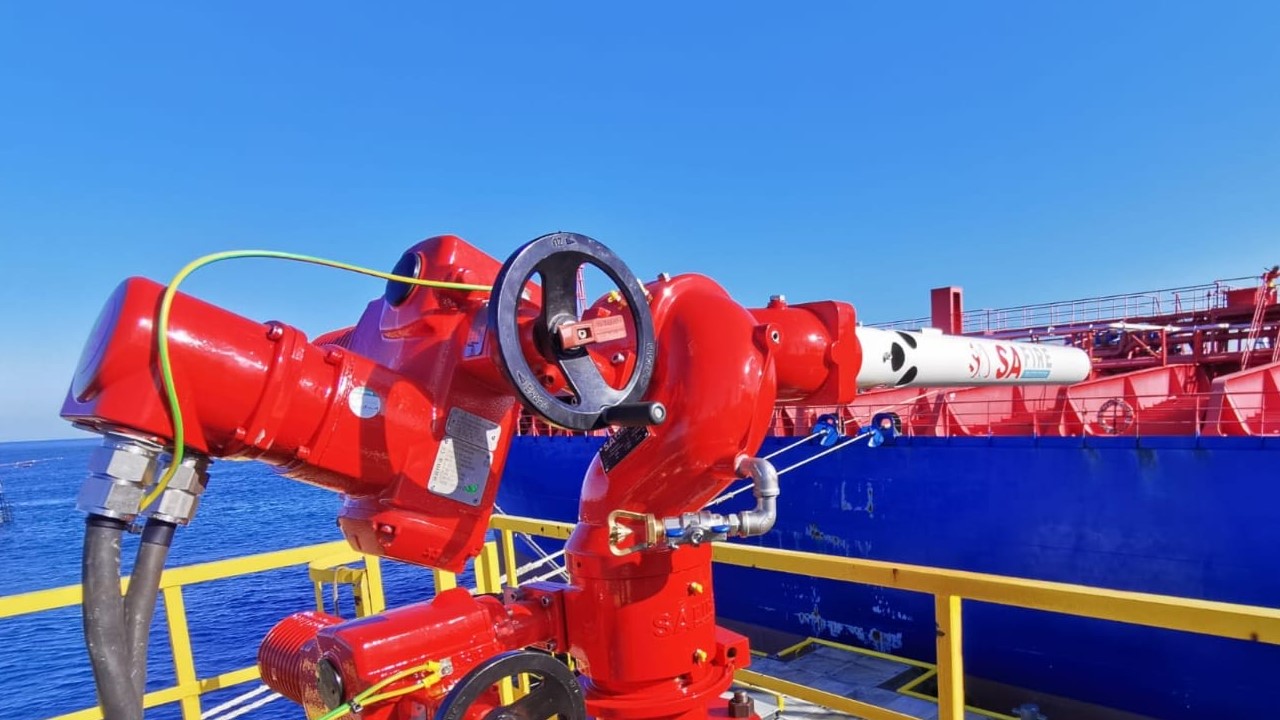

These monitors are specifically designed for petrochemical jetty and marine harbour protection, structure and vessel cooling as well as systems that require a low probability of failure on demand. The constant monitoring of the system status allows a possible failure to be detected and repaired when the fire protection system is in “safe condition”.
