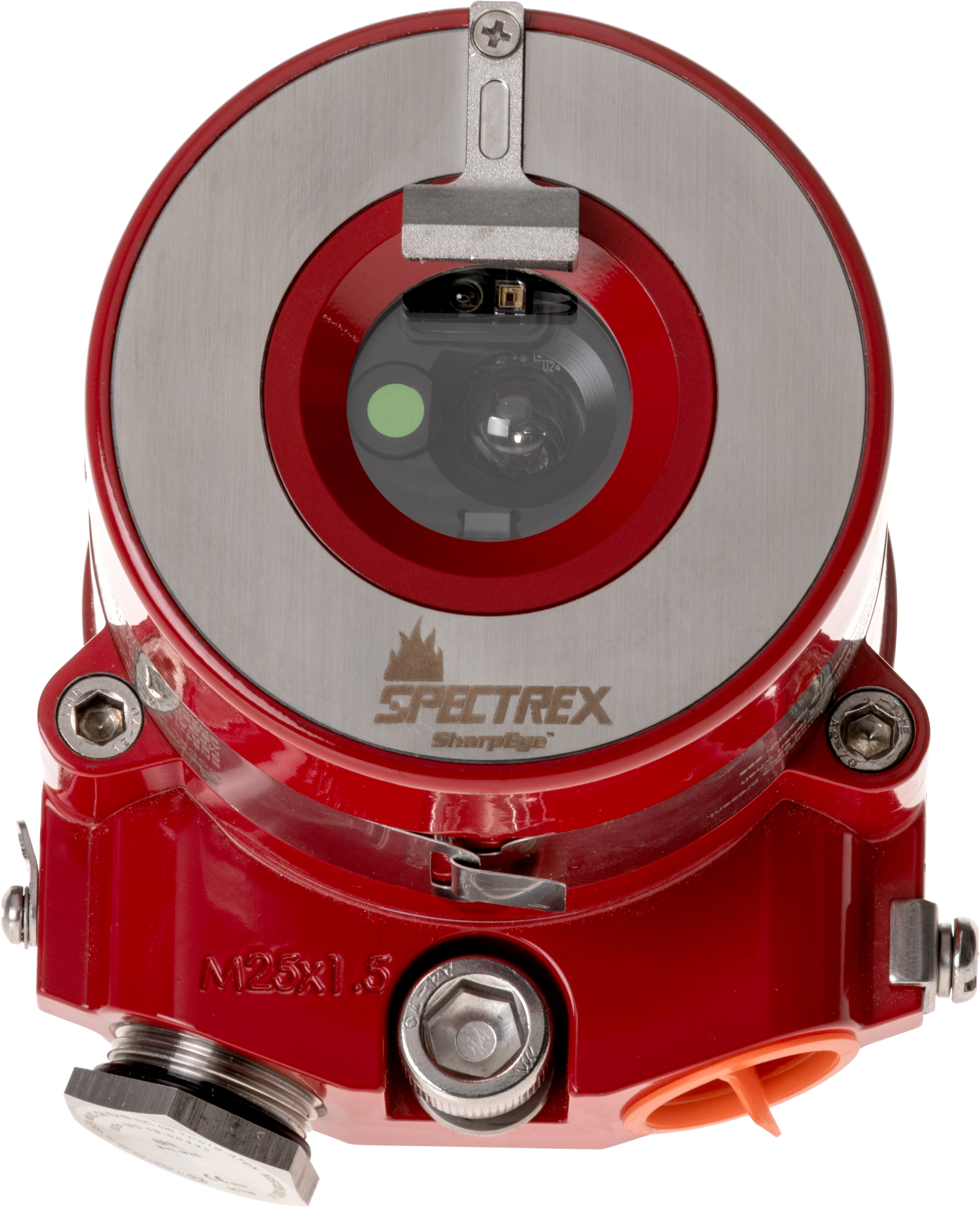

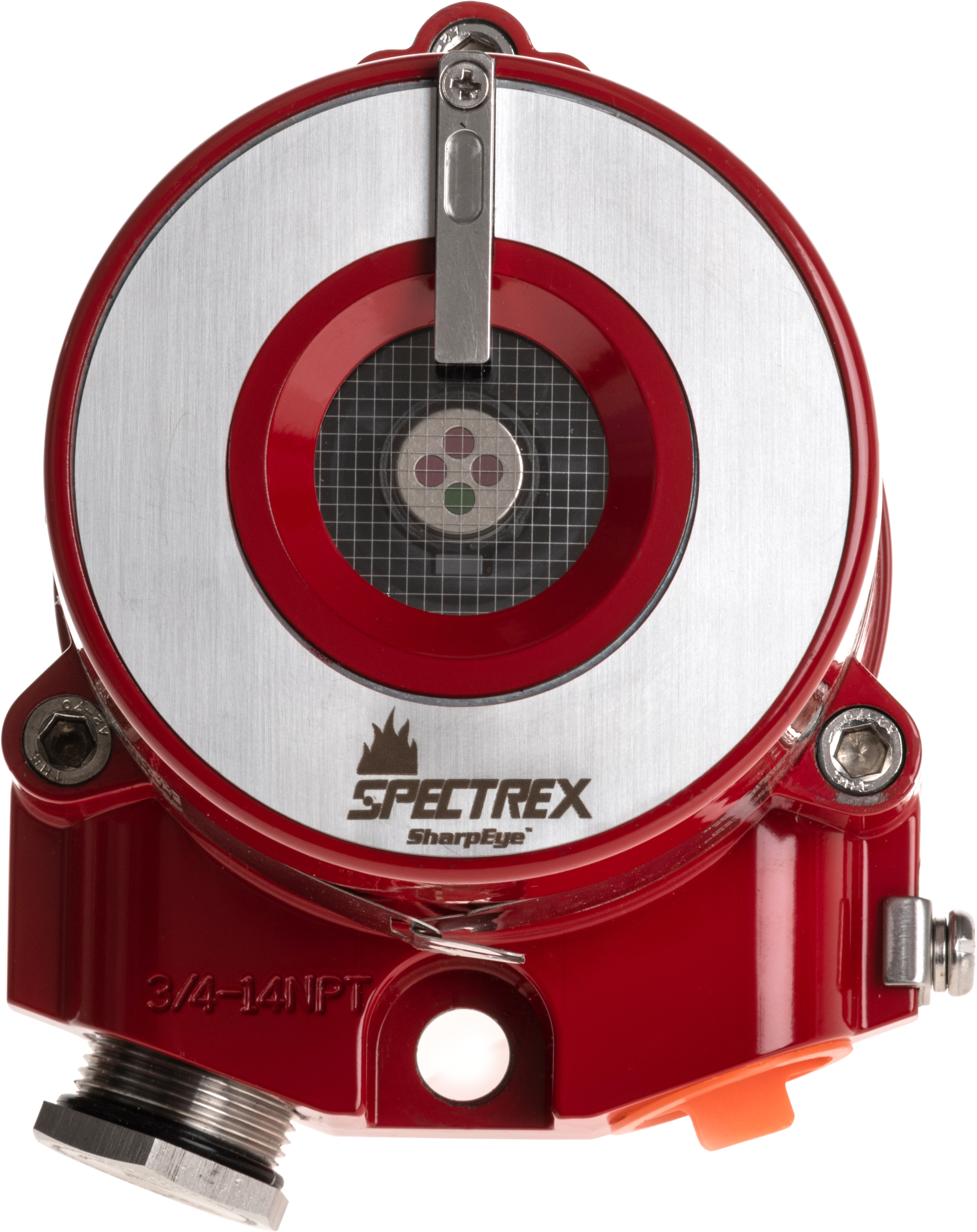

40/40 D-I and 40/40D-M series

The Next Level in The Optical Flame Detection Industry With Superior Performance and Reliability

- By Using the New Quad Sense Techology we have extended Detection distance and Better Speed of response .

- Extended detection range increases the detection coverage by > 2 times

- Longest distance detection with revolutionary optics in extreme environments

- Fastest – Ultra fast response to fire

- Widest operation temperature range -76 to +185 °F (-60 to +85 °C)

- Flawless operation with optical integrity - Smart Field-of-View & IR/UV BIT

- Proprietary algorithm to eliminate false alarms has context menu

-- SIL3 Compitable

- Can be programmed for Smart COV Location

By Using UV Techology which is reliable and not effeted by high vibration.
The SafEye Quasar open path UV detection technology includes the 950 and the 960 Series..

• Long Range Toxic Gas Detection up to 200ft (60m)
• both with path lengths of up to 200ft (60m).
• Detection of toxic gases:
• 950 Series detects H2S
• 960 Series detects NH3
• 0-20mA
• HART Protocol for maintenance and asset management
• RS-485, Modbus Compatible
• Simple, one-person installation, alignment, and calibration
• Multiple output options for maximum flexibility and compatibility
• Certified performance/Hazardous Area approved (FM, ATEX, IECEx, CSA, and more) for location in Zone 1 areas and 3rd party performance approved (FM, DNV)
• Multiple output options for maximum flexibility and compatibility
• Programmable configuration via the handheld unit
• Fast connection to I.S. approved handheld diagnostic/calibration unit
• 3mA “maintenance call”
• SIL2 Certified

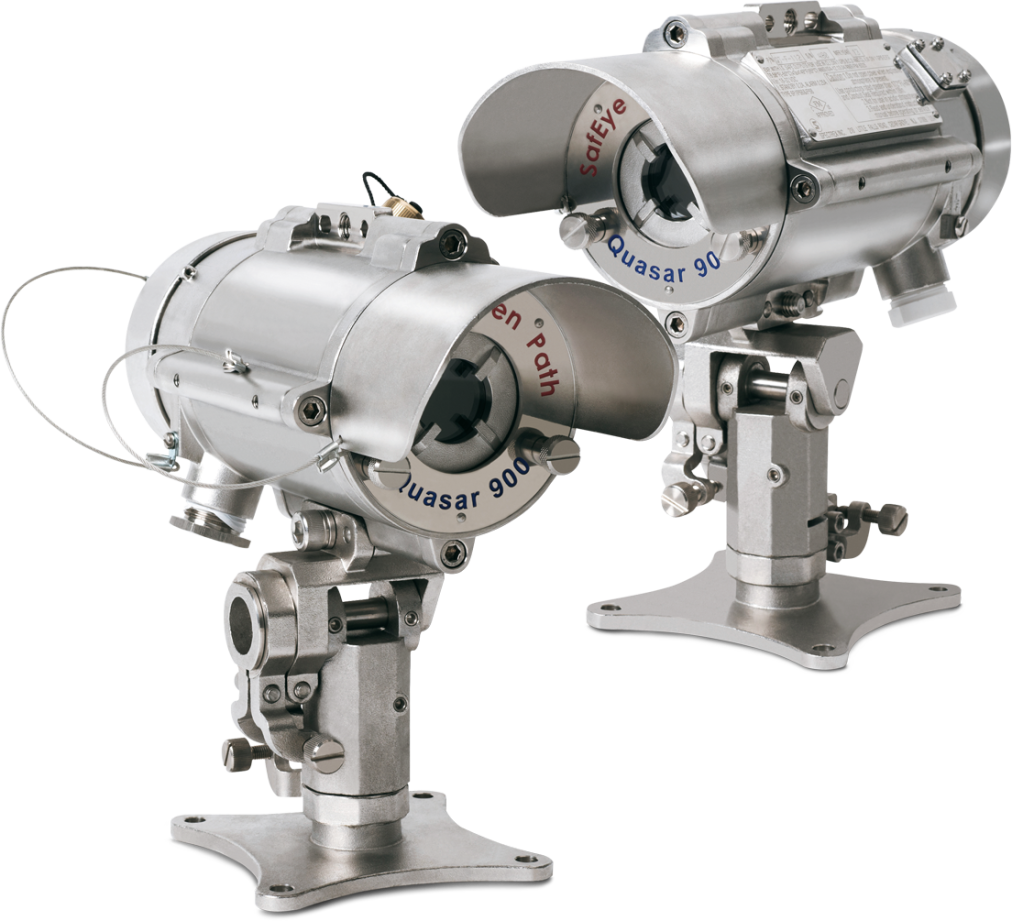

The SafEye Quasar 900 is an open path detection system which provides continuous monitoring for combustible hydrocarbon gases. It employs “spectral fingerprint” analysis of the atmosphere using the Differential Optical Absorption Spectroscopy (DOAS) technique.

• Detection of hydrocarbon combustible gases
• High reliability
• Immunity to false alarms
• Performance in all weathers
• Failsafe
• Built-in data logger
• Gas library
• Minimum detectable level – 0.15 LEL m
• Simple to align and commission
• Certified for operation in hazardous locations
• 0-20mA analog output with HART capability
• Gas library
• Minimum detectable level – 0.15 LEL m
• Simple to align and commission
• Certified for operation in hazardous locations
• 0-20mA analog output with HART capability
• SIL2 Certified

Fire and Gas Systems (FGS) are mitigation systems that are employed after an incident occurs. An FGS should lessen the
effect of the incident to give time for people to evacuate the area, contain the incident from escalating, and allow for response
teams to assess and deal with the emergency.

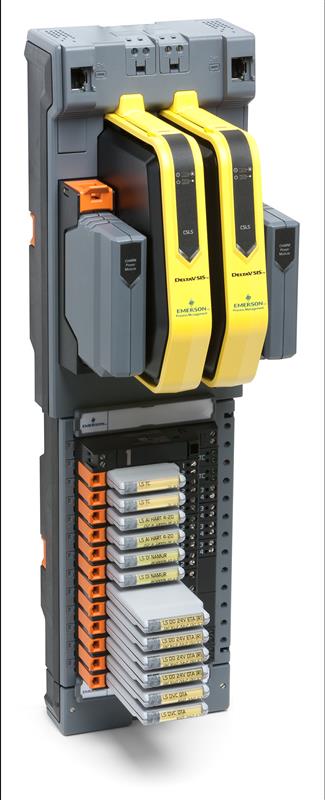

DeltaV SIS is a process safety system that can be used in multiple safety applications including fire and gas detection or
mitigation systems. DeltaV SIS enables an integrated approach and can interface the FGS with the Emergency Shutdown.
(ESD) system to initiate a plant shutdown if hazardous events occur

The Duct SafEye 300 Series Open Path Detectors monitor ingress of hazardous flammable gas concentrations into air intakes of turbine engines and HVAC air ducts. Duct applications require that the small path across an air inlet responds with a very high sensitivity, full scale of 1 LEL.m for 2-6.6ft (0.6-2m) wide inlet and full scale of 2.5 LEL.m for 6.6-23ft (2-7m) wide inlet.

With the following specs:

• High sensitivity
• Fast response
• Low maintenance
• Proven technology
• Specially designed to perform in harsh environments
• Multiple Output Options: 0-20 mA current output,Sink (source option), HART 7.0 protocol, RS485, Modbus compatible Relays x 3 (Fault, Alarm, Accessory)
