The ATG Access SP400 SM 48, 64 & 80 Bollards are the latest innovation within an already extensive shallow-foundation bollard portfolio.

Building on the huge success of the original SP400 shallow mount bollard, this new model introduces the next generation of shallow foundation technology.

The SP400 SM 48, 64 & 80 impact-tested bollards have a slim profile making them aesthetically pleasing and able to be fitted with a multitude of sleeve and street furniture options. Its shallow foundation depth enables effective perimeter protection to be installed within urban environments which typically have a dense network of underground services.

The system is incredibly flexible and can cope with complex array requirements with ease. This compact modular design delivers this flexibility with fewer components, resulting in more efficient transportation. This, together with the small quantities of concrete required for installation, makes the SP400 SM 48, 64 & 80 Bollard a great choice.

The SP1000 high-security bollard was the first of ATG Access’s high-security bollards to be successfully impact tested, nearly two decades ago, in accordance with PAS 68 arresting a 7,500 kg vehicle travelling at 80 kph (50mph). The product is HCIS compliant and has also been tested to comply with the American ASTM standard achieving a M50: P1 rating.

This product is hydraulically operated-product, offering outstanding security and aesthetics and is ideal for sites under threat of a high-velocity attack and with limited stand-off distance between the perimeter and the infrastructure being protected.

Able to cope with a high number of operations per hour, this product is ideal for sites with high traffic flow. The bollards can be part of a large, secure access control scheme or operated as a standalone system.

The control board provided as standard is a PLC control system which we can setup to meet custom operational requirements. The product raises and lowers in just 5-6 seconds.

The SP1000 shallow-foundation, high-security bollard is ideal for providing perimeter protection for sites at risk of the highest velocity attack. The product is available as a static shallow foundation or removable bollard.

Shallow-foundation design enables effective perimeter protection to be installed within urban environments which typically have a dense network of underground services.The shallow-foundation units can be supplied in a multitude of shapes allowing bollards to be fitted around existing street furniture items such as bins, benches, street corners and curved roads.

The SP1000 shallow-foundation static is available in two certified variants. The 150 mm deep shallow-foundation bollard has been successfully tested with a 7,500 kg vehicle travelling at both 64 and 80 kph. An even shallower version is also available requiring just 112 mm to install. This variant has been tested twice to withstand a 7,500 kg vehicle travelling at both 48 and 64 kph.

The SP400 Super Shallow Bollard is the latest innovation within the ATG Access SP400 range. Building on the huge success of the original SP1000 shallow mount bollard, this new model introduces the next generation of shallow-foundation technology.

The SP400 Super Shallow impact-tested bollard has a slim profile making it aesthetically pleasing and able to be fitted with a multitude of sleeve and street furniture options. Its super shallow foundation depth of only 128mm, enables effective perimeter protection to be installed within urban environments which typically have a dense network of underground services.

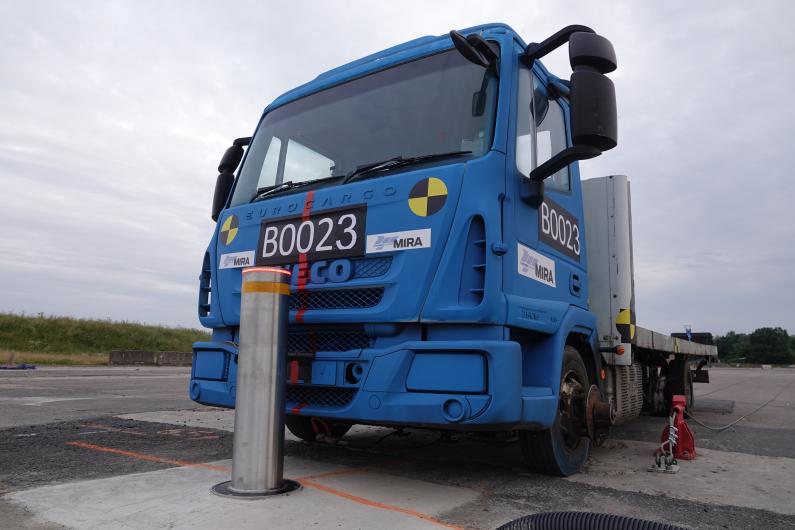

Successfully impact tested to the IWA 14-1 testing standard, this product can arrest a 7,200 kg vehicle travelling at 80 kph (50 mph) with minimal penetration.

The ATG Access SPK12 Fixed Bollard offers a cost-effective perimeter protection solution where the highest security performance is required.

Achieving less than a meter of penetration when impacted with a 7,200 kg vehicle traveling at 80 kph; this product is suitable for critical national infrastructure protection where standoff distances available between a building perimeter and the building itself are minimal.

The SPK12 fixed high-security bollard consists of a steel, concrete-filled tube placed into a reinforced and certified foundation – concrete and rebar structure.

Impact tested in accordance with IWA 14, the SPK12 has been successfully tested to arrest a 7,200 kg vehicle traveling at 80 kph (50 mph).

A removable variant (SPK12R), the strongest currently tested in the perimeter security market, is available to provide occasional access.

HCIS Compliant, the concrete-filled tube is supplied galvanised as standard and can be painted to a specified RAL colour if required.

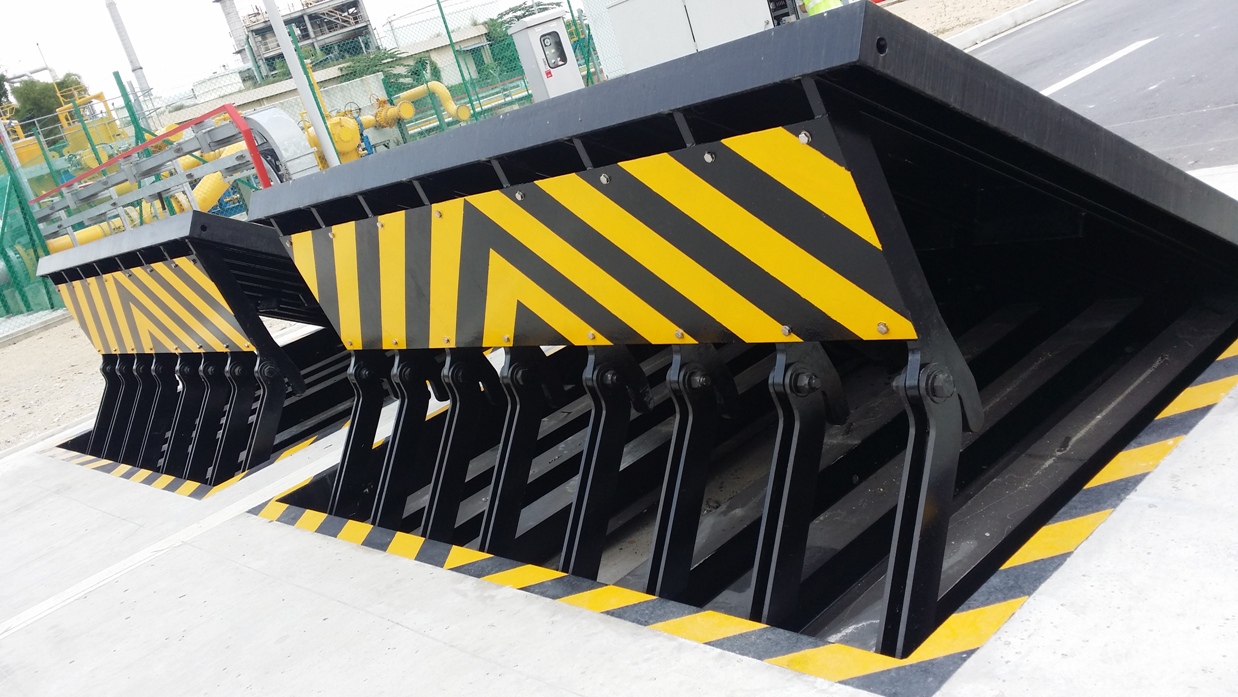

The Sentinel Road Blocker offers the ultimate in high-security protection for entrance ways. The products robust construction and high level of corrosion protection delivers reliable performance for years.

HCIS compliant and certified to DOS K12, the Sentinel can be deployed in emergency fast operation mode (EFO) in under 2 seconds. In normal operation, the product raises and lowers in 4 to 6 seconds.

The Sentinel may be integrated with our sophisticated control systems offering almost infinite flexibility of control.

The Sentinel is powered by a sophisticated hydraulic system which is modular in design so you can specify the duty cycle and operating characteristics you require.

Road blockers can be used to create a sally-port security design, allowing security guards to manually search for a vehicle entering a very high-security site.

To increase visibility of the barrier, the Sentinel Road Blocker can be supplied with LED lights on the front plate. Available in widths between 8ft-14ft.

The SP1200 shallow-foundation, high-security bollard is the world’s strongest bollard, ideal for providing pedestrian-permeable, perimeter protection for sites at risk of the highest-velocity attack.

Shallow-foundation design enables effective perimeter protection to be installed within urban environments which typically have a dense network of underground services that cost a fortune to redirect. The shallow-foundation units can be supplied in a multitude of shapes allowing bollards to be fitted around existing street furniture items such as bins and benches. This allows for bollards to be fitted easily around street corners and curved roads.

The SP1200 shallow-foundation static has been successfully tested to the IWA 14-1 standard, arresting a 30,000kg vehicle travelling at 80 kph, achieving just 4 meters of penetration within a foundation depth of just 300mm.
