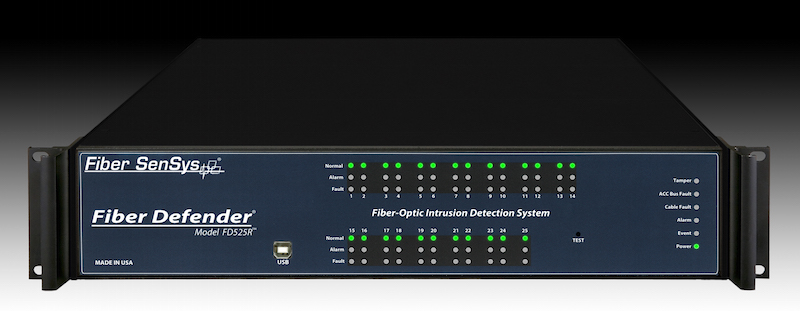

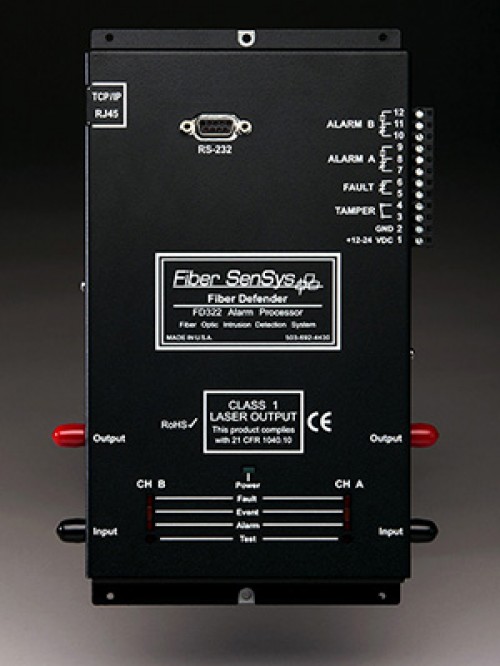

Fiber Defender Series: Key Features

• All Fiber Defender® Alarm Processor Units (APUs) are CE/RoHS compliant and made in the USA.
• Wind/noise and calibration software included with all APUs.
• All Fiber Defender® sensor cables are immune to EMI, RFI, and lightning.
• 300 series & 500 series available

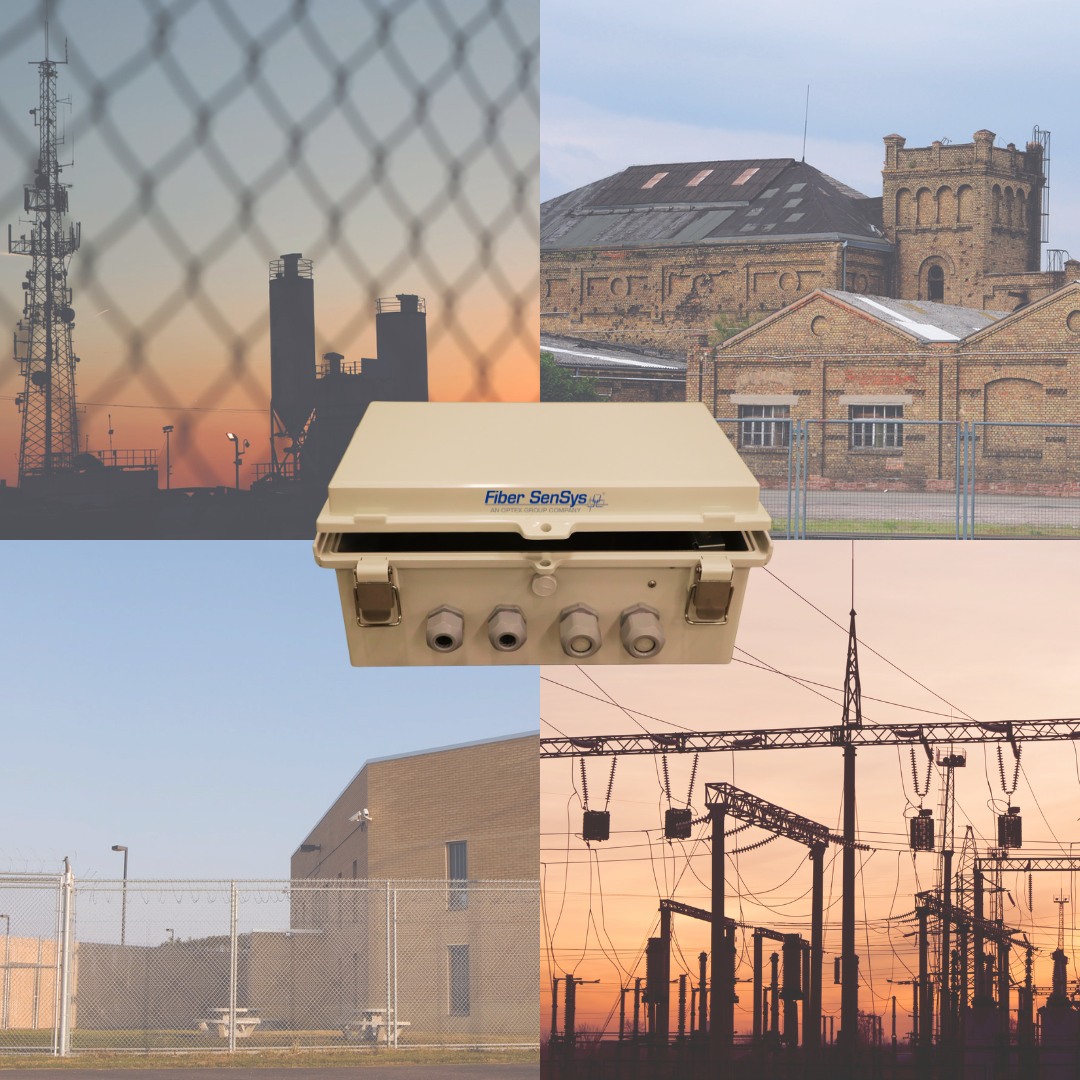

The Point Defender PD500™ is a point location intrusion detection system designed for fence deployment. It is the only copper fence sensor with cut-tolerance. By utilizing the Fiber SenSys patented End-to-End Correlation (E2EC™) technology, performance and reliability are greatly improved over other systems.

Key Features:

• • 1m point location
  • Cut tolerant cable configuration
  • Power and data over sensing cable
  • Failover processors
  • Virtual zones

The E2EC techonology is responsible for several important benefits including cut tolerant cable configuation, failover processor configurations, and sensitivity leveling.

Cut Tolerance.

Processor Failover.

Sensitivity Leveling.

These features are critical to sites that value security and reliability.

Fiber Defender Series: Key Features

• All Fiber Defender® Alarm Processor Units (APUs) are CE/RoHS compliant and made in the USA.
• Wind/noise and calibration software included with all APUs.
• All Fiber Defender® sensor cables are immune to EMI, RFI, and lightning.
• 300 series & 500 series available

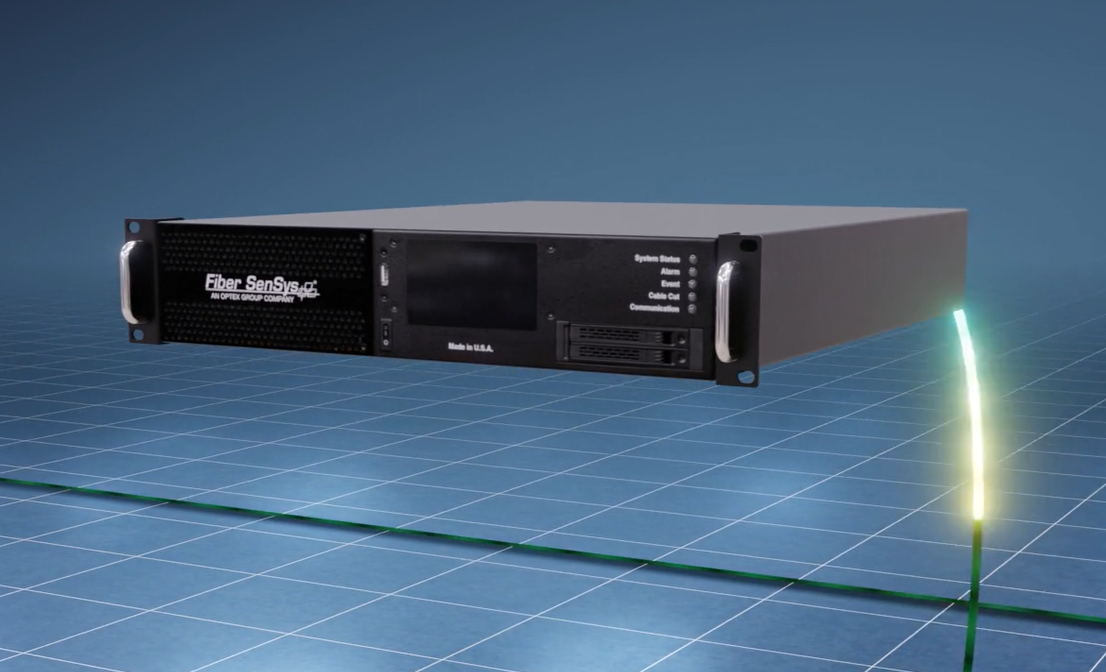

Point Locating Distributed Acoustic Sensors (DAS)

The EchoPoint EP9300™ Distributed Acoustic Sensors (DAS) utilize the latest technologies in fiber optic sensing and machine learning algorithms to provide the most advanced solution for applications requiring long-range, point locating intrusion detection sensors. These advancements make EchoPoint sensors a key part of the solution in large sites where precise intrusion location is needed.

We provide two high performing, highly reliable long-range intrusion detection sensors. The EchoPoint is an outstanding choice for large sites and are suitable for the following deployments:

• Fence Mounted
• Buried
• Wall Top
• Pipeline

Key Features:

• Location accuracy of ±6m
• Software zoning from 20m to 50km per zone
• GIS integrations
• Maximum fiber optic sensor length of up to 50km

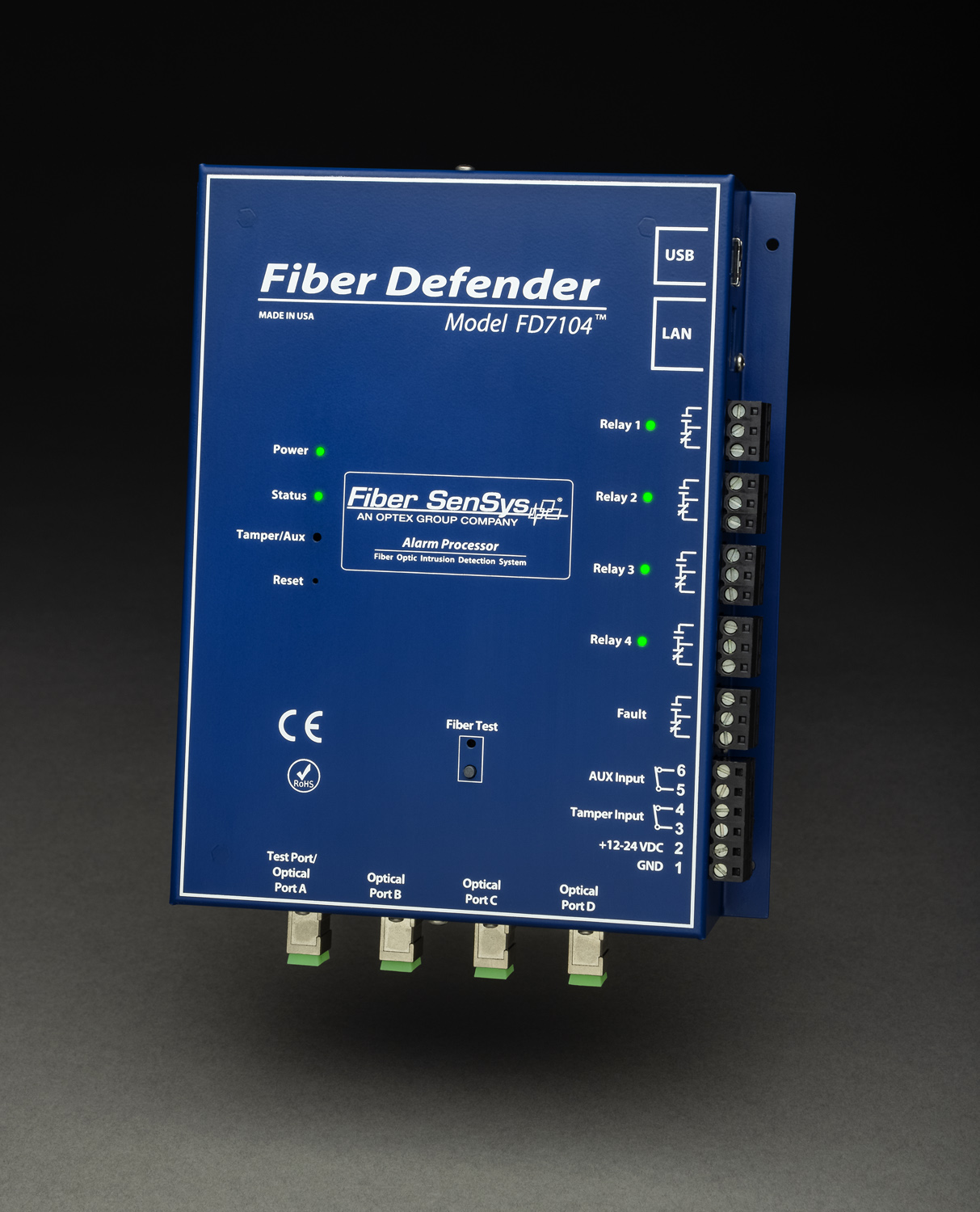

Four-zone Fiber-optic Intrusion Detection System

Utilizing our new next-generation algorithm – built on our more than 30 years of success and leadership in perimeter solutions, the FD7104 delivers a browser-based embedded interface system for perimeter projects.

Key Features:

• Next generation algorithm
• Embedded web interface
• Power over ethernet (POE) or traditional power supply
• Built-in browser-based tuning/calibration tools
• Embedded Installer/Operations manual with context sensitive help
• Four zones per processor
• Over 4Km of insensitive lead-in cable per zone
